Description
12 Inch Differential Drive Low-Frequency Woofer. 1.5 Inch Exit Compression Driver, 1.5 inch Voice-Coil, High-Frequency Compression Driver. Large PT Progressive Transition waveguide for excellent pattern control and low distortion. Rotatable waveguide for vertical or horizontal orientation. 60° x 40° Coverage.
System Power Rating: Passive mode: 300 W (1200 W peak), 100 hrs. Frequency Response (±3 dB): 43 Hz – 18 kHz. Maximum SPL (1m): Bi-amp mode: LF: 122 dB HF: 131 dB. System Sensitivity (1w @ 1m) Passive mode: 96 dB SPL
Bi-Amp/Passive Switchable. Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality.
Applications: Performing Arts Facilities, Theatrical Sound Design, Auditoriums, Worship Facilities, Live Clubs, Dance Clubs, Sports Facilities, Themed Entertainment Venues

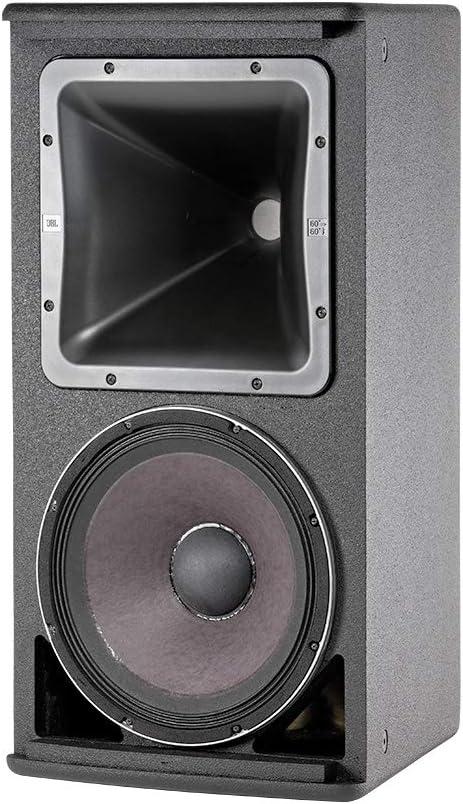

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
